The Ultimate Guide to Choosing and Installing Your TV Wall Mount

So, you’re ready to take your home entertainment setup to the next level? A Tv Wall Mount isn’t just about saving space; it’s about transforming your living area, optimizing your viewing experience, and giving your room that sleek, modern touch. As someone who’s spent over 15 years knee-deep in brackets, drills, and spirit levels, I can tell you that picking and installing the right tv wall mount is a game-changer. But with so many options out there, where do you even begin? Don’t worry, you’ve come to the right place. At Dikfu.com, we’re all about empowering you with the knowledge to tackle these projects safely and effectively.

Unpacking the World of TV Wall Mounts: Which Type is Right for You?

Choosing the right tv wall mount is like picking the perfect frame for a masterpiece – it needs to complement your TV, your room, and your viewing habits. Let’s break down the most popular types you’ll encounter.

Fixed TV Wall Mounts: Simplicity Meets Sleekness

If you’re looking for a clean, minimalist look and your TV will be watched from a consistent eye-level position, a fixed tv wall mount is your go-to.
These mounts hold your TV close to the wall, almost like a picture frame, offering the lowest profile. They are typically the most affordable and easiest to install, perfect for dedicated viewing areas where glare isn’t an issue.

Tilting TV Wall Mounts: Banish Glare, Elevate Viewing

Ever found yourself squinting at your screen because of an annoying window glare? A tilting tv wall mount is your solution. These mounts allow you to tilt your TV screen downwards by a few degrees. This feature is especially beneficial if your TV is mounted higher than eye level, perhaps above a fireplace, as it helps reduce glare and provides a more comfortable viewing angle. It’s a fantastic middle-ground option, offering more flexibility than a fixed mount without the complexity of full motion.

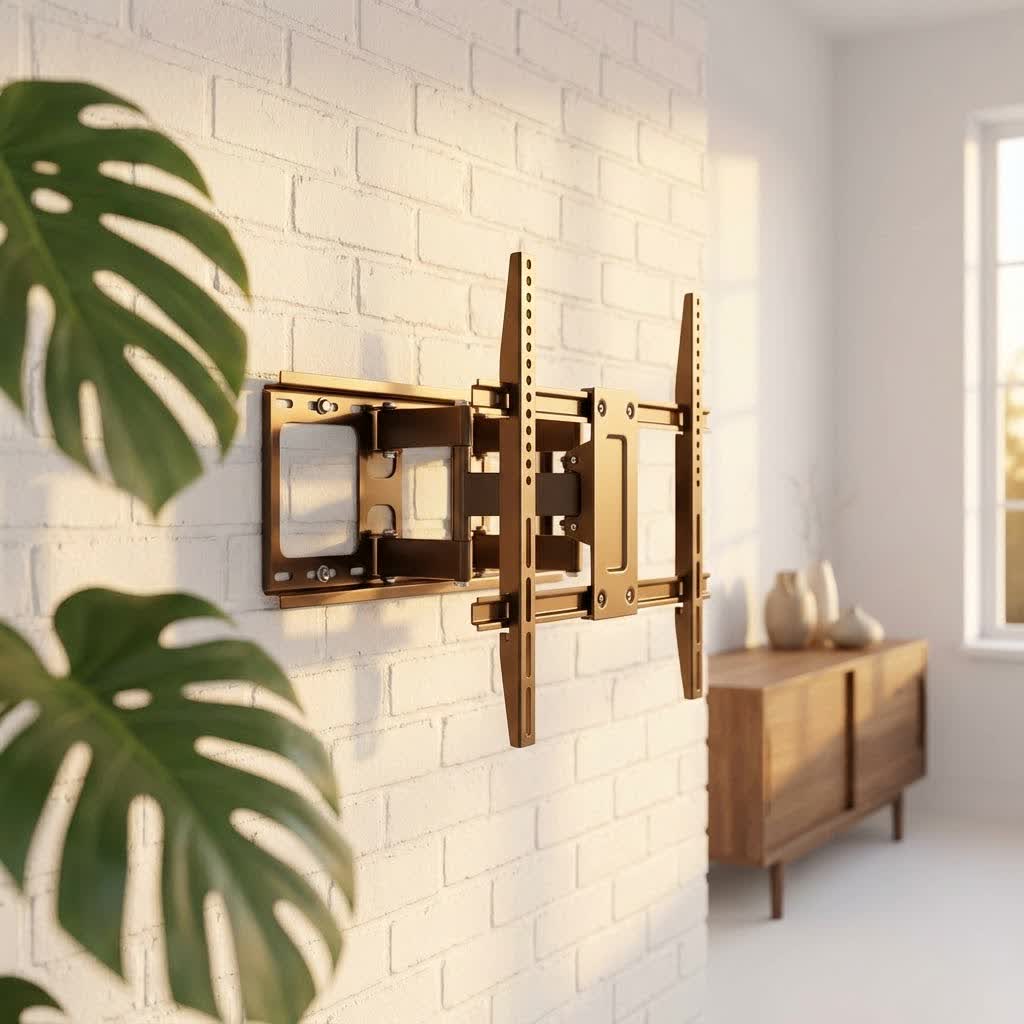

Full-Motion (Articulating) TV Wall Mounts: Ultimate Flexibility

For the ultimate in viewing versatility, nothing beats a full-motion, or articulating, tv wall mount. These mounts allow you to extend your TV away from the wall, swivel it from side to side, and tilt it up or down.
They are ideal for open-concept living spaces, corner installations, or rooms where you need to view the TV from multiple angles, like a kitchen and living room combo. While they require a bit more wall space and can be pricier, the freedom they offer is often well worth the investment.

Other Niche Options

Beyond the big three, you might also find low-profile mounts (even slimmer than fixed mounts), or swivel mounts (offering side-to-side movement without extension). Each serves a specific purpose, but the fixed, tilting, and full-motion variants cover the vast majority of needs.

Beyond the Mount Type: Critical Factors for Choosing Your Perfect TV Wall Mount

Selecting the type of tv wall mount is just the first step. To ensure a safe and optimal installation, you need to consider a few more crucial details.

VESA Compatibility: The Universal Language of TV Mounting

What exactly is VESA? It’s the standard set of measurements for the four mounting holes on the back of your TV, indicating the distance between them (e.g., 200x200mm, 400x400mm).
Your tv wall mount must be compatible with your TV’s VESA pattern. You can usually find this in your TV’s manual or by simply measuring the distance between the holes yourself. It’s a non-negotiable match!

TV Size and Weight: Don’t Underestimate the Load

Every tv wall mount has a specified weight capacity and screen size range. It’s absolutely critical that your TV’s weight falls within the mount’s stated limit.
Exceeding this can lead to catastrophic failure, damaging your TV and potentially causing injury. Always err on the side of caution; a mount designed for a heavier TV provides an extra layer of security. Check your TV’s specifications and the mount’s product details carefully.

Wall Type Matters: Drywall, Studs, Brick, or Concrete?

The type of wall you’re mounting your TV to significantly impacts the installation process and the hardware you’ll need.
Most residential walls are drywall over wooden studs. A stud finder is your best friend here, as mounting directly into studs provides the strongest support. For brick, concrete, or metal studs, you’ll need specialized anchors and drill bits. Never attempt to mount a heavy TV directly into drywall without hitting a stud or using appropriate heavy-duty drywall anchors, which are generally only suitable for lighter TVs and specific mount types.

Your Viewing Experience: Angle, Height, and Room Layout

Think about where you’ll be watching TV most often. The general rule of thumb is to position the center of your screen at eye level when you’re seated.
If you have a large couch or multiple seating areas, a full-motion tv wall mount might be necessary to accommodate different viewing angles. Consider potential glare from windows or lights and how a tilting or articulating mount could help mitigate it.

DIY Masterclass: Step-by-Step Installation of Your TV Wall Mount

Ready to get hands-on? Installing a tv wall mount is a rewarding DIY project if approached with care and the right tools.

Gather Your Arsenal: Essential Tools for the Job

Before you even think about drilling, make sure you have everything you need. Here’s a quick checklist:

• Stud Finder: Absolutely critical for finding secure mounting points.
• Drill and Drill Bits: Matched to your wall type and anchor size.
• Level: To ensure your TV is perfectly straight.
• Measuring Tape: For precise placement.
• Pencil: For marking drill points.
• Screwdriver/Wrench: To secure bolts.
• Safety Glasses: Eye protection is a must!
• A Helper: Never try to lift a large TV by yourself.

Pre-Installation Prep: Safety First, Measure Twice

First, locate the studs in your wall using your stud finder. Mark the center of each stud where your mount will sit. Now, attach the mounting brackets to the back of your TV (this often involves just a few screws). Hold the wall plate of your tv wall mount against the wall, align it with your stud markings, and use your level to ensure it’s straight. Mark the drill holes precisely. Remember, measure twice, drill once!

Mounting the Bracket: Securely Attaching to Your Wall

With your holes marked, it’s time to drill pilot holes. Ensure your drill bit matches the size recommended by the mount manufacturer for your specific wall anchors. Once the pilot holes are drilled, insert any necessary wall anchors (if not mounting directly into studs, which is always preferred for maximum stability). Now, align your tv wall mount wall plate with the holes and securely fasten it to the wall using the provided lag bolts or appropriate heavy-duty fasteners. Tighten everything down, but don’t over-tighten and strip the screws. Give the mount a good tug to ensure it’s rock-solid.

The Grand Reveal: Hanging Your TV and Final Checks

This is the moment of truth! With the help of your assistant, carefully lift your TV and hook its attached brackets onto the tv wall mount arm or wall plate. Most mounts have a locking mechanism or safety screws to prevent the TV from accidentally being knocked off. Engage these safety features immediately. Once the TV is on the mount, use your level again to make any final adjustments to ensure it’s perfectly straight. Double-check all connections and safety mechanisms.

The Art of Disappearing Acts: Cable Management & Aesthetic Touches

You’ve got your TV perfectly mounted – now don’t let a spaghetti tangle of cables ruin the look!

Why Cable Management is Non-Negotiable

Beyond aesthetics, organized cables are safer, prevent tripping hazards, and make it easier to troubleshoot or upgrade your system down the line. A clean setup simply looks more professional and thought-out.

Creative Ways to Conceal Cables

There are several effective ways to make those unsightly wires vanish:

• In-Wall Cable Management Kits: These involve cutting small holes in your drywall (typically behind the TV and near an outlet) and running cables through the wall cavity. This provides the cleanest look but requires a bit more DIY skill.
• Cable Raceways/Concealers: These are channels that attach to your wall, allowing you to hide cables inside. They can be painted to match your wall color, making them virtually disappear.
• Behind Furniture: For simpler setups, routing cables behind media consoles or other furniture can often suffice.
• Cable Sleeves/Ties: Even if cables are visible, bundling them neatly with sleeves or ties makes a huge difference.

The Final Polish: Styling Your Mounted TV Area

Once your tv wall mount is installed and cables are hidden, take a step back. Add a soundbar below, some strategic lighting, or perhaps a floating shelf to truly complete the aesthetic. The mounted TV now becomes a focal point of a thoughtfully designed space.

Troubleshooting Common TV Wall Mount Installation Headaches

Even with careful planning, sometimes little issues pop up. Here’s how to tackle them.

Uneven TV?

If your TV looks slightly crooked after mounting, don’t despair. Many tv wall mount models have built-in leveling adjustments that allow for minor rotations. If yours doesn’t, you might need to slightly loosen the screws attaching the TV brackets to the mount, adjust the TV’s position, and then re-tighten.

Can’t Find Studs?

A quality stud finder is usually reliable. If you’re struggling, try listening for a solid sound when tapping the wall, or look for electrical outlets, which are typically attached to studs. As a last resort, if you absolutely cannot hit a stud, consider using heavy-duty toggle bolts or specialized drywall anchors that are rated for your TV’s weight. However, mounting directly into studs is always the preferred method for the strongest hold.

Wobbly Mount?

A wobbly tv wall mount is a serious safety concern. Immediately take the TV off the mount. Re-check all screws and bolts on both the wall plate and the TV brackets to ensure they are fully tightened. Verify that you mounted into studs correctly or used appropriate anchors for your wall type and TV weight. If the wall itself feels weak, you may need to reconsider the mounting location or reinforce the wall.

Cable Conundrums?

If your cables are too short or you’re having trouble routing them, don’t force it. Longer cables are relatively inexpensive and can save you a lot of headache. For in-wall solutions, ensure the holes are large enough and that no sharp edges are chafing the cables.

---

“A well-installed TV wall mount isn’t just about convenience; it’s an investment in your home’s aesthetics and your family’s safety. Always prioritize proper measurements, correct tools, and never hesitate to get an extra pair of hands. Your future self (and your TV) will thank you!” – Alex Stone, Founder & Lead Content Creator, Dikfu.com

Frequently Asked Questions About TV Wall Mounts

Q1: How high should I mount my TV?

A1: The ideal height for a tv wall mount positions the center of the screen at eye level when you are seated in your primary viewing position. This typically translates to about 42-55 inches from the floor, depending on your seating and TV size.

Q2: Can I install a TV wall mount by myself?

A2: While installing the wall bracket can often be a one-person job for experienced DIYers, lifting and securing the TV onto the tv wall mount absolutely requires at least two people, especially for larger or heavier televisions, to prevent damage or injury.

Q3: What if I don’t have studs where I want to mount my TV?

A3: If studs aren’t available, you’ll need to use heavy-duty drywall anchors specifically designed for the weight of your TV and mount. However, mounting into wood studs provides the most secure installation, and it’s always recommended to hit at least one stud if possible for any tv wall mount setup.

Q4: How do I find my TV’s VESA pattern?

A4: Your TV’s VESA pattern can usually be found in its user manual, on the manufacturer’s website under specifications, or by simply measuring the horizontal and vertical distance (in millimeters) between the four mounting holes on the back of your television.

Q5: What’s the difference between a fixed and a tilting mount?

A5: A fixed tv wall mount holds your TV flat and flush against the wall with no adjustability, offering a very low-profile look. A tilting mount allows you to angle your TV screen slightly downwards, which helps reduce glare and improve viewing comfort, especially if the TV is mounted higher than eye level.

---

Installing a tv wall mount is an incredibly satisfying project that can significantly enhance your home viewing experience and improve your living space. By understanding the different types of mounts, considering crucial factors like VESA compatibility and wall type, and following a methodical installation process, you can achieve a professional-looking result safely and effectively. Don’t be intimidated; with the right knowledge and tools, you’re more than capable of tackling this.
